Drainage products

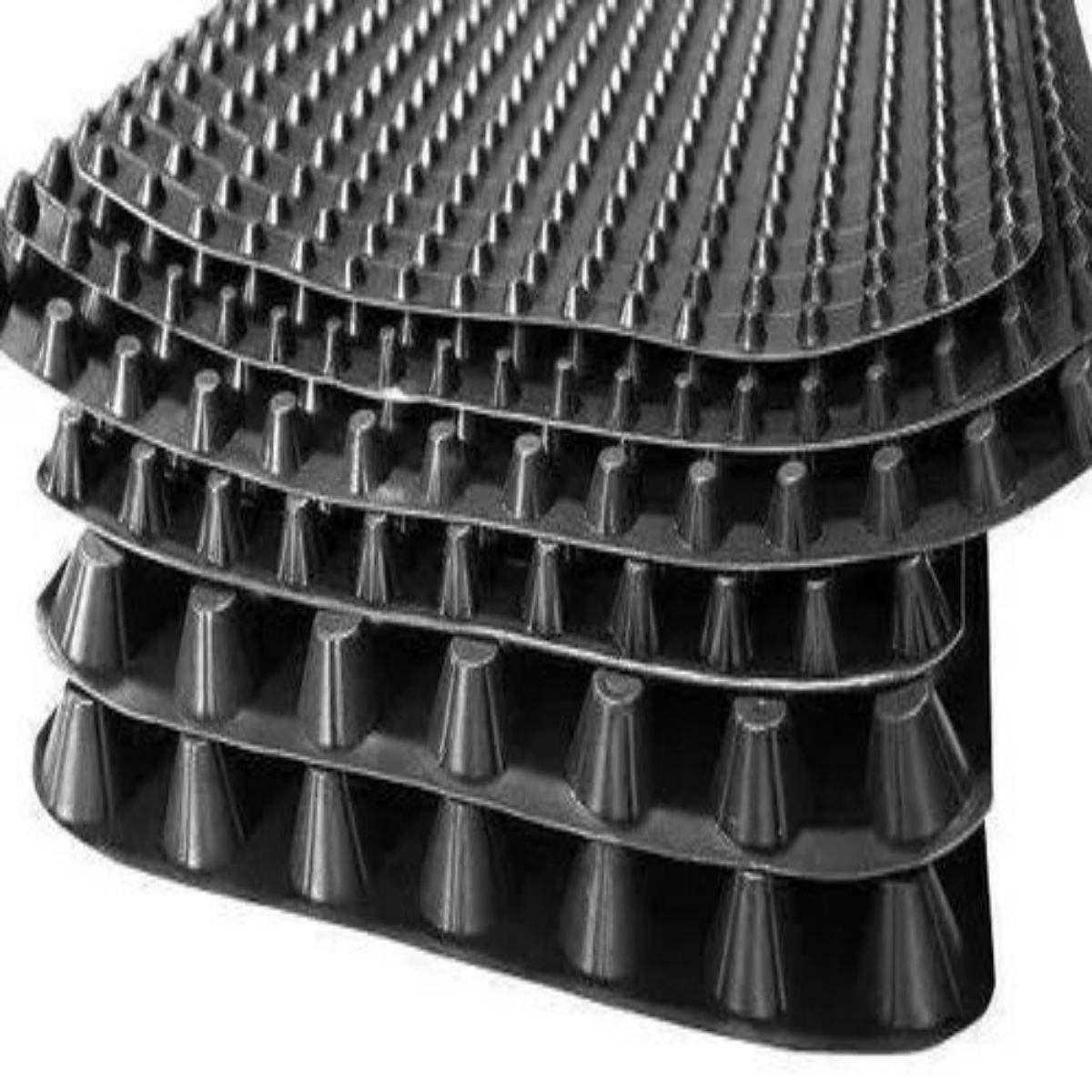

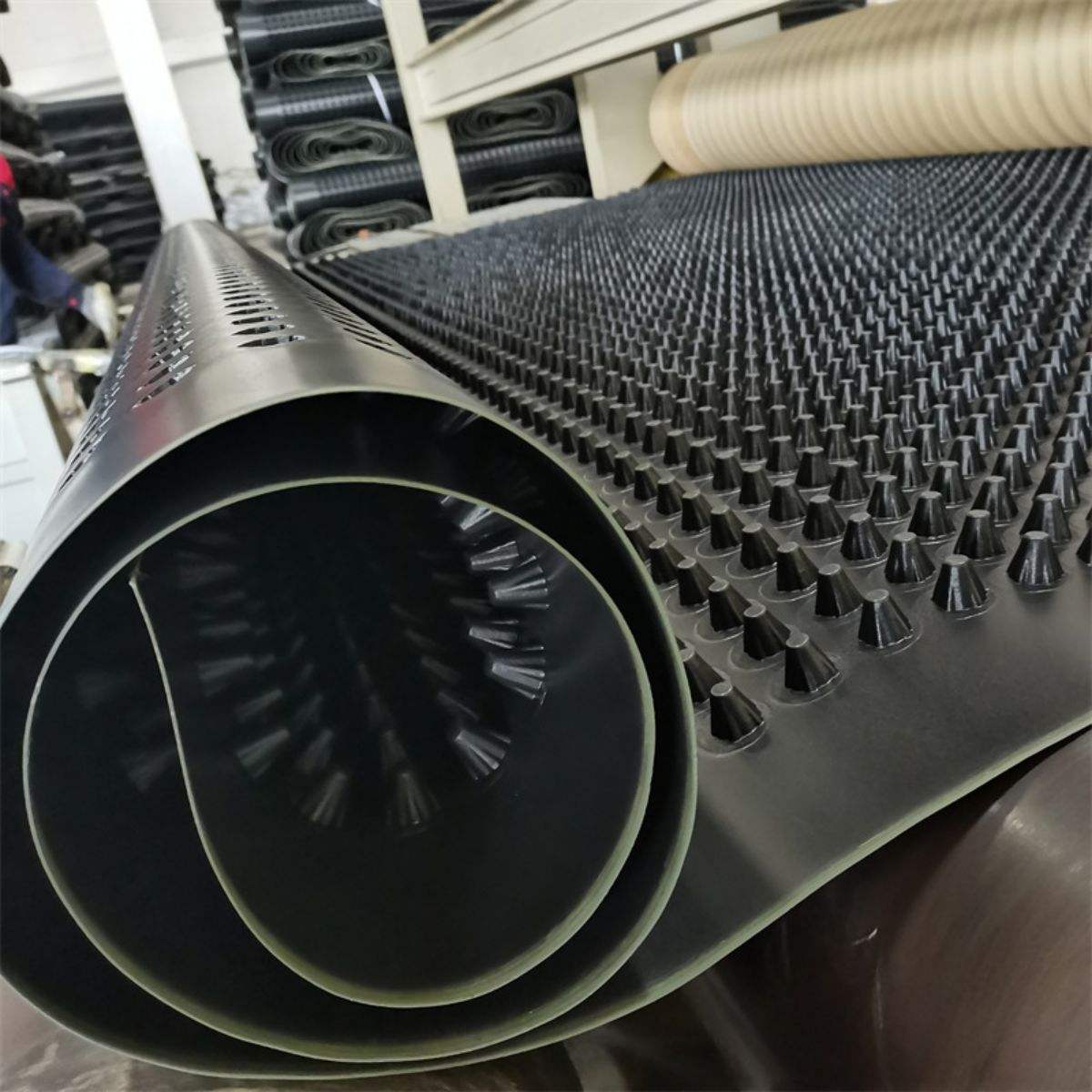

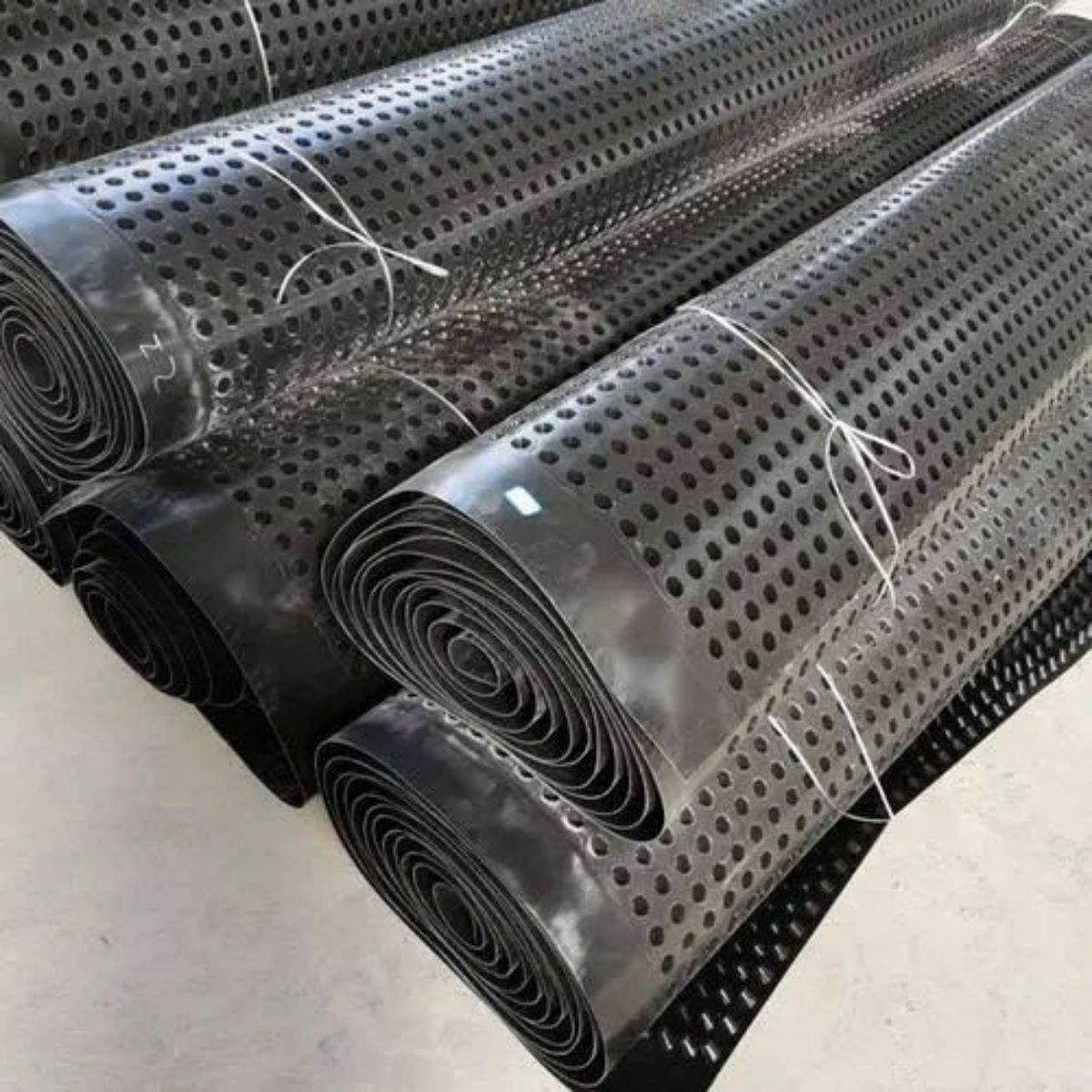

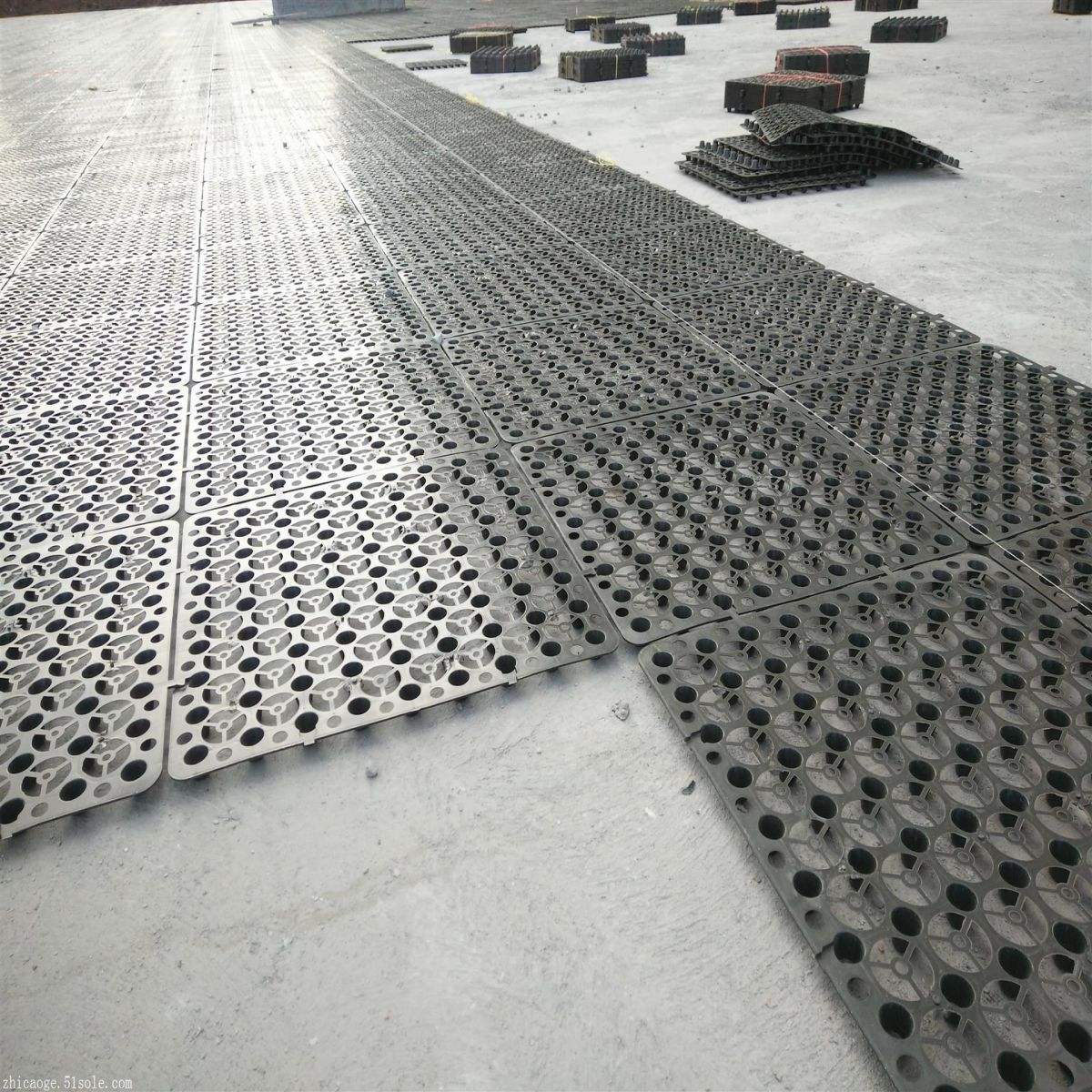

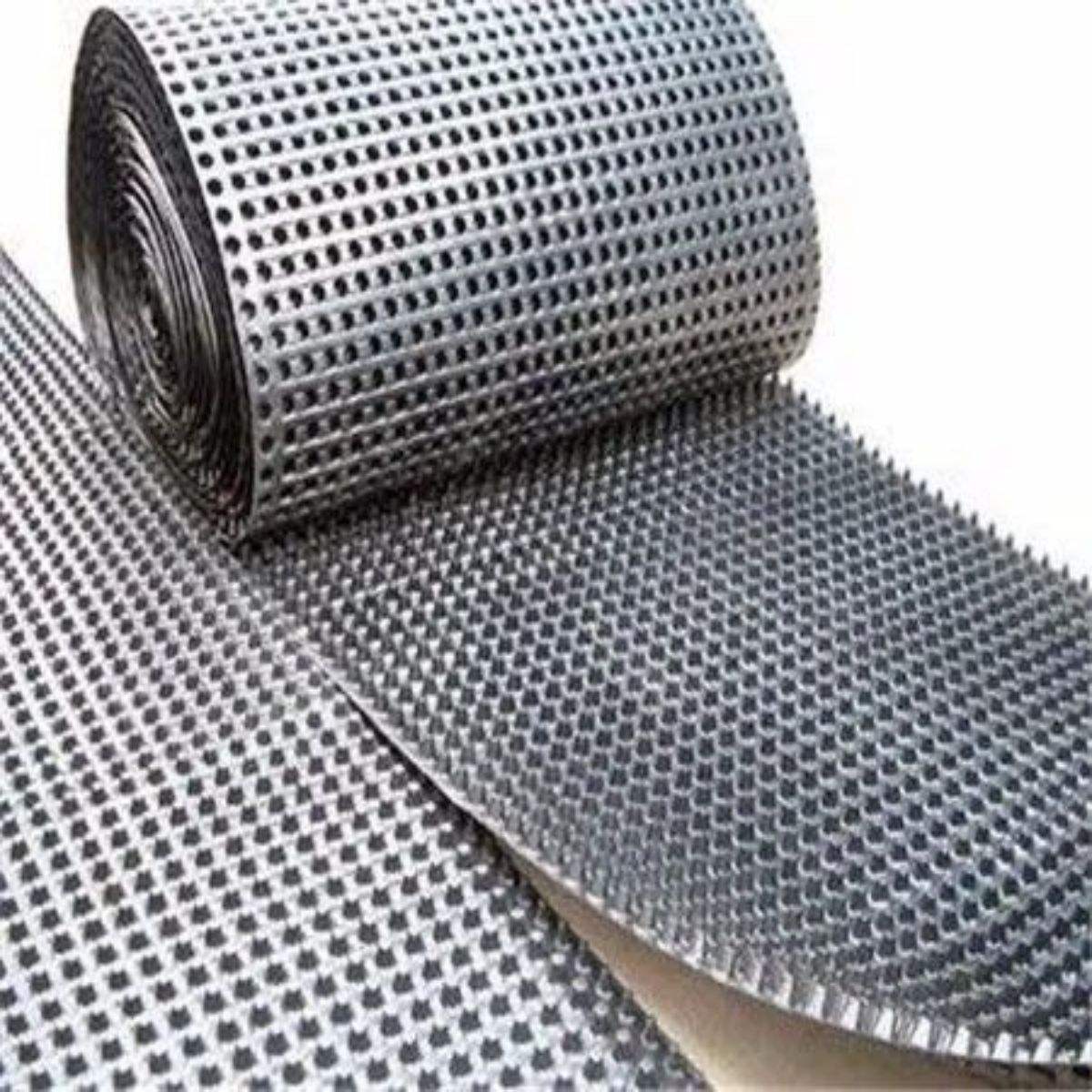

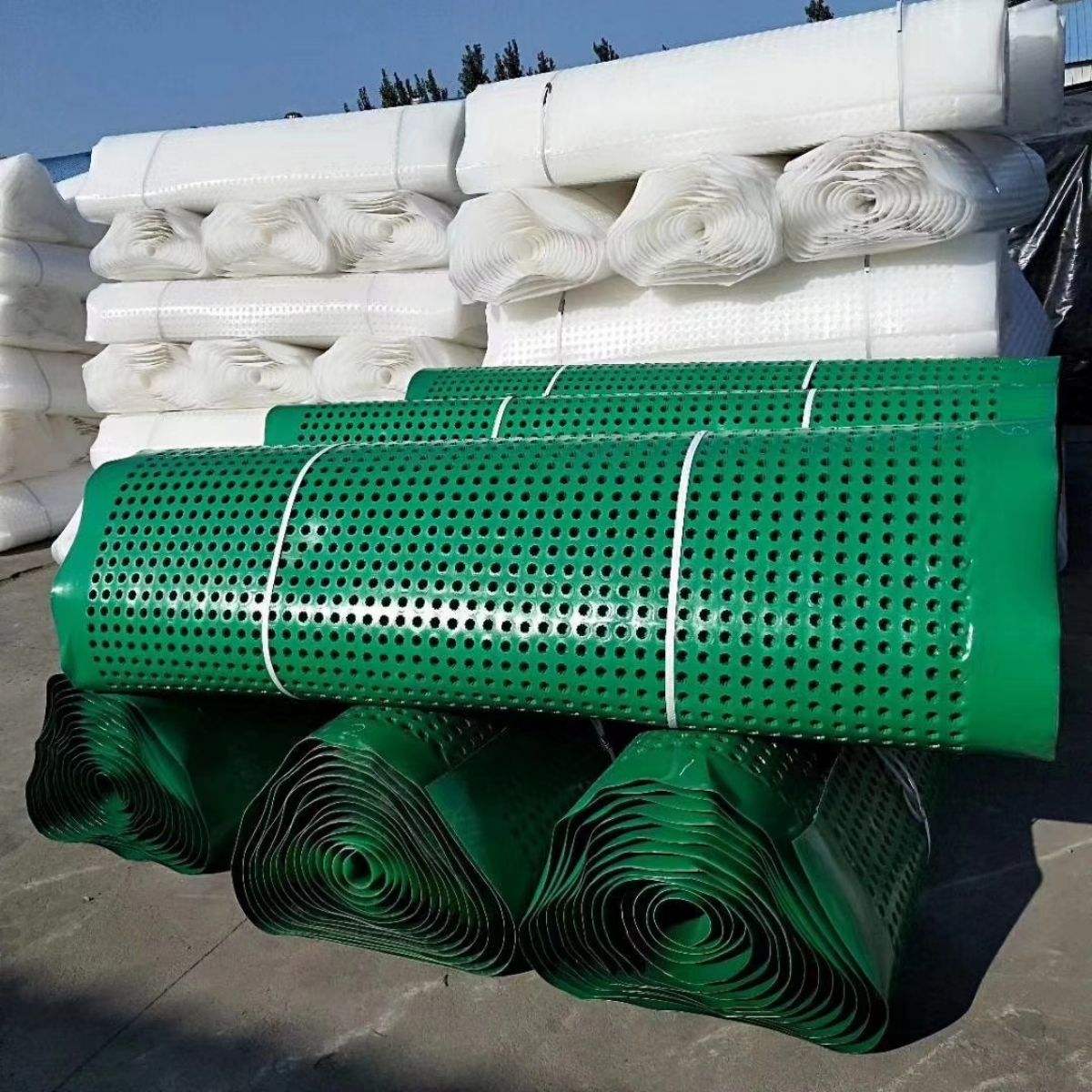

Factory Wholesale Plastic Dimple Drainage Board Plastic Drainage Sheet

Manager Guo: +86-13716460920

ONLINE MESSAGE

Product details

Key attributes

Industry-specific attributes

Warranty

1 Year

After-sale Service

Online technical support

Project Solution Capability

total solution for projects

Application

Earthwork

Design Style

Industrial

Other attributes

Place of Origin

Shandong, China

Brand Name

Shengxing

Model Number

PSB-25

Type

Drainage board

Place of Origin

Shandong, China

material

HDPE Plastic

Color

Black White Green

pressure load

300kpa

Usage

Roof Drain , Road Subgrade , slope protection

Width

customerised

Weight

1000g/m2-1800g/m2

Elongation

≥80%

Puncture strength

≥350N

Application

Rain Water Drainage and storage

When the elongation is 10%, the tensile force/(N/100mm) ≥		350
Maximum tensile force/（N/100mm）≥		600
elongation at break/% ≥		25
Tear resistance/N ≥		100
Compression performance	Maximum strength/kPa at a compression rate of 20% ≥	150
	Extreme compression phenomenon	No rupture
Low temperature flexibility		-10℃ No cracks
Tensile retention rate at 10% elongation/% ≥		80
Maximum tensile retention rate /% ≥		90
Elongation at break retention rate/% ≥		70
Maximum strength retention rate/% at a compression rate of 20% ≥		90
Extreme compression phenomenon		No rupture
Low temperature flexibility		-10℃ No cracks
Longitudinal flow rate (lateral pressure 150kPa)/(cm3/s)≥		10

Lead time

Quantity (square meters)	1 - 5000	5001 - 10000	> 10000
Lead time (days)	7	9	To be negotiated

For more customization details, message supplier

Geomembrane

Smooth Geomembrane HDPE liner is the low permeable synthetic membrane liner and geotechnical engineering materials which are widely used for solid waste containment, mining and water containment applications

Geotextile

Geotextiles are the permeable and durable textile materials widely used to separate, filter, reinforce, protect, retain or drain soil.

Geogrid

Geogrid is a kind of high performance geosynthetic product which is widely used to reinforce or stabilize soils and other materials for subgrade improvement, pavement base reinforcement, or retaining walls, etc. Feature1：Excellent chemical resistance.

Feature2：Outstanding stress crack capacity. Feature3：Lowest permeability. Feature4：Excellent UV resistance. Feature5：Stable low temperature embrittlement resistance. Feature6：Cost effective. Feature7：Easy Operation Feature8：Easy transportation, fast deploymen Feature9：Color blue ,white,black,green Feature10：Color can also be customized according to customer requirements.
