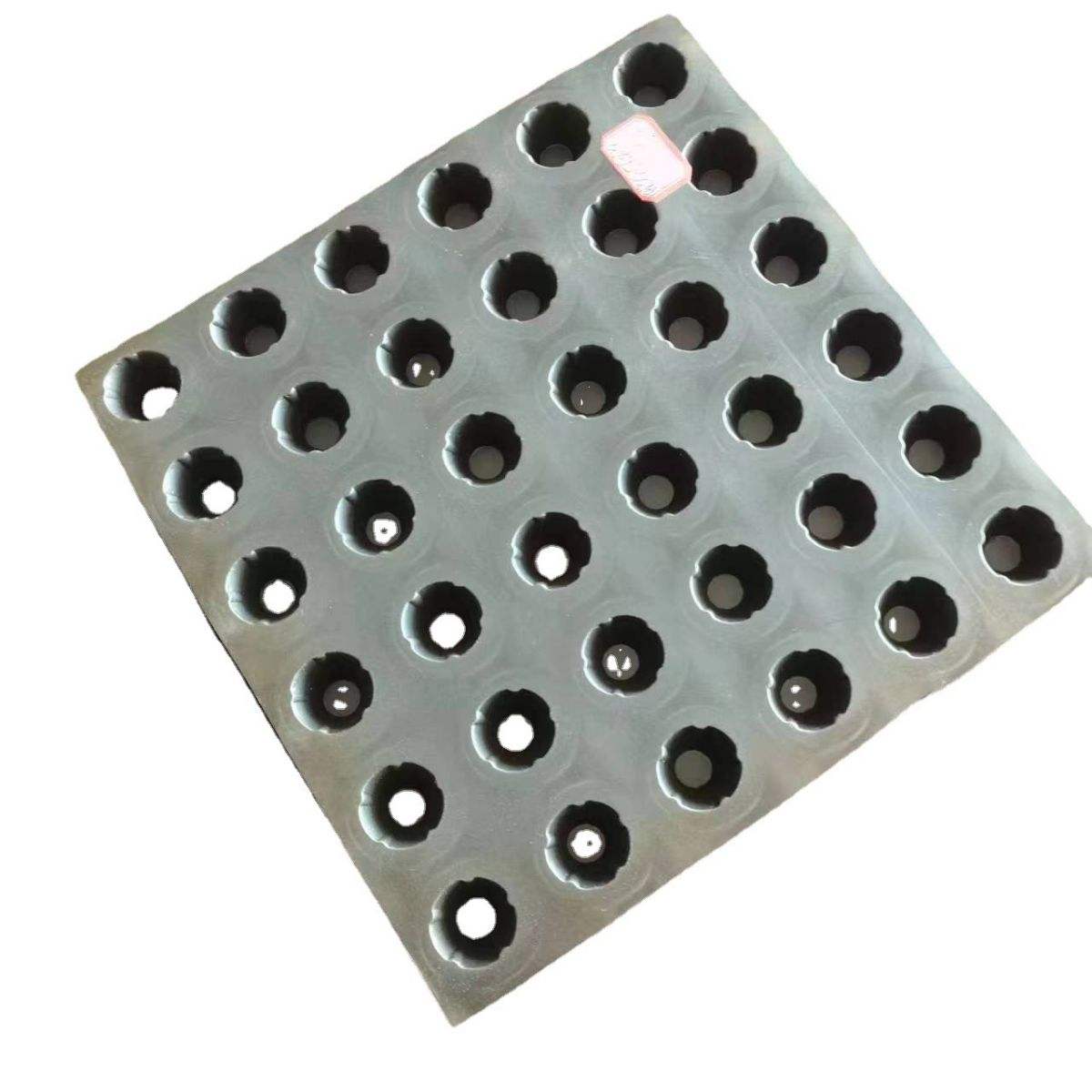

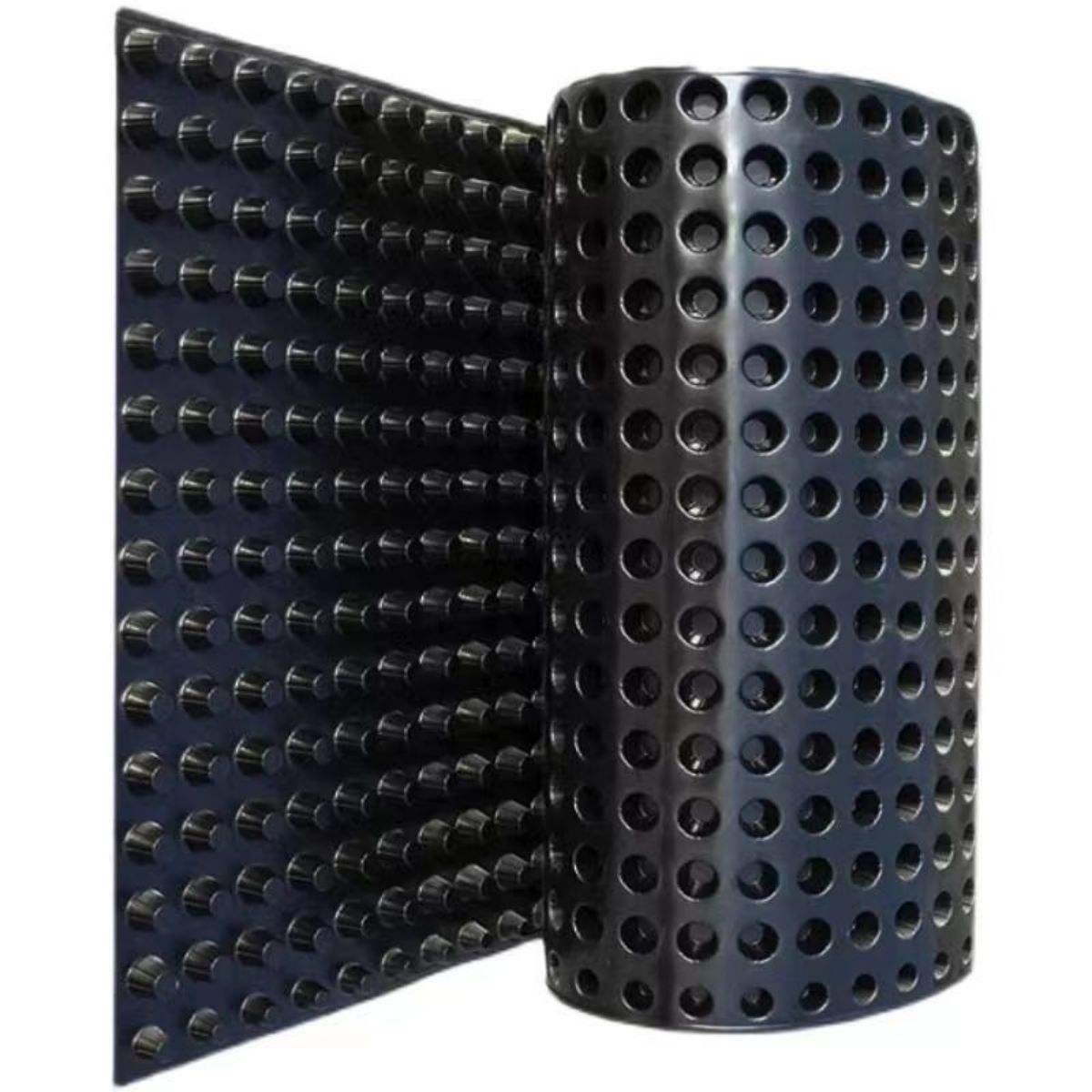

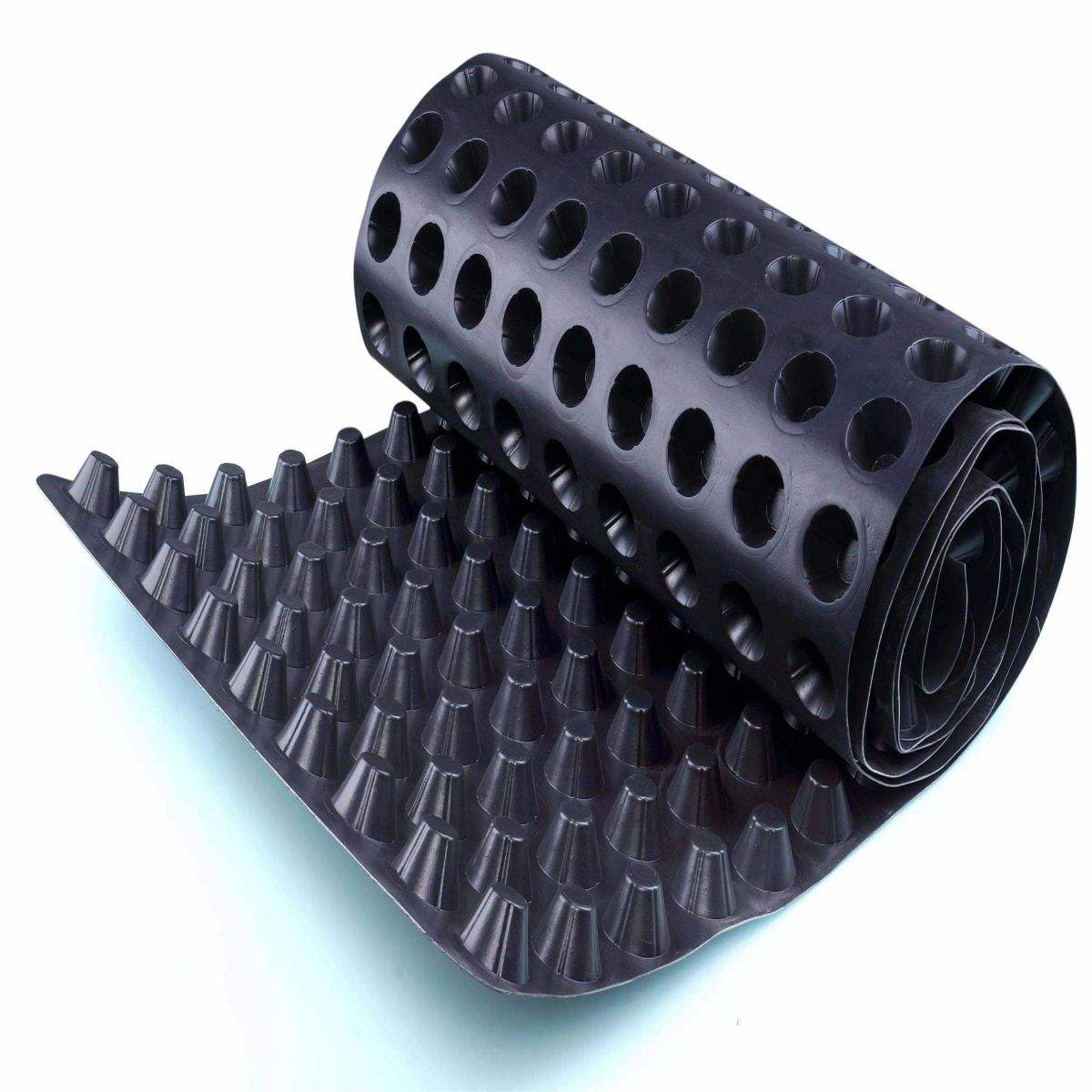

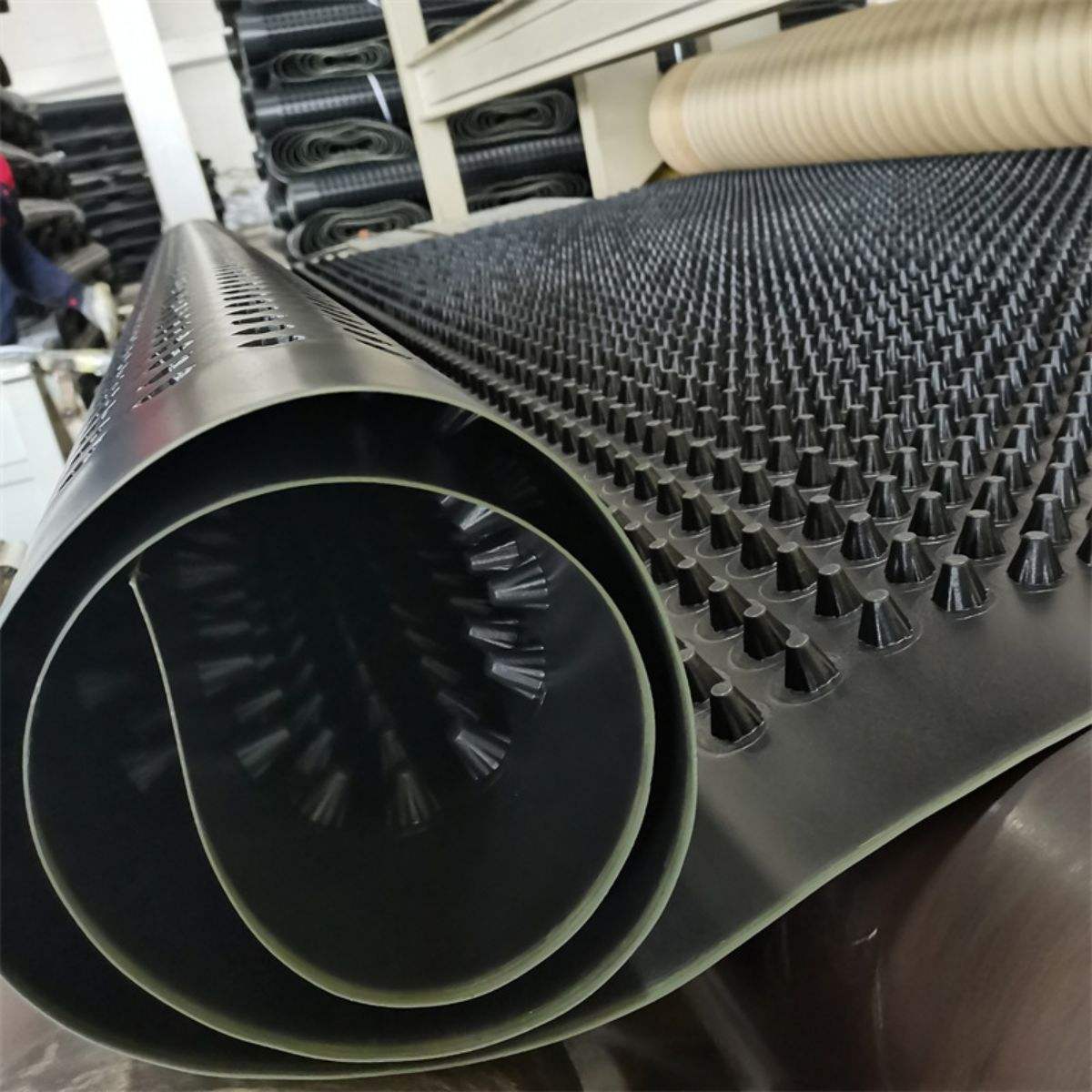

High Strength HDPE Dimple Drain Board/drainage sheet /dimple drain board

Manager Guo: +86-13716460920

ONLINE MESSAGE

Product details

Key attributes

Industry-specific attributes

Warranty

1 Year

After-sale Service

Online technical support

Project Solution Capability

total solution for projects

Application

Road waterproofing system

Design Style

Industrial

Other attributes

Place of Origin

Shandong, China

Brand Name

Shengxing

Model Number

PSB-15

Type

drainage board

Place of Origin

Shandong, China

material

HDPE Plastic

Color

Black White Green

pressure load

300kpa

Usage

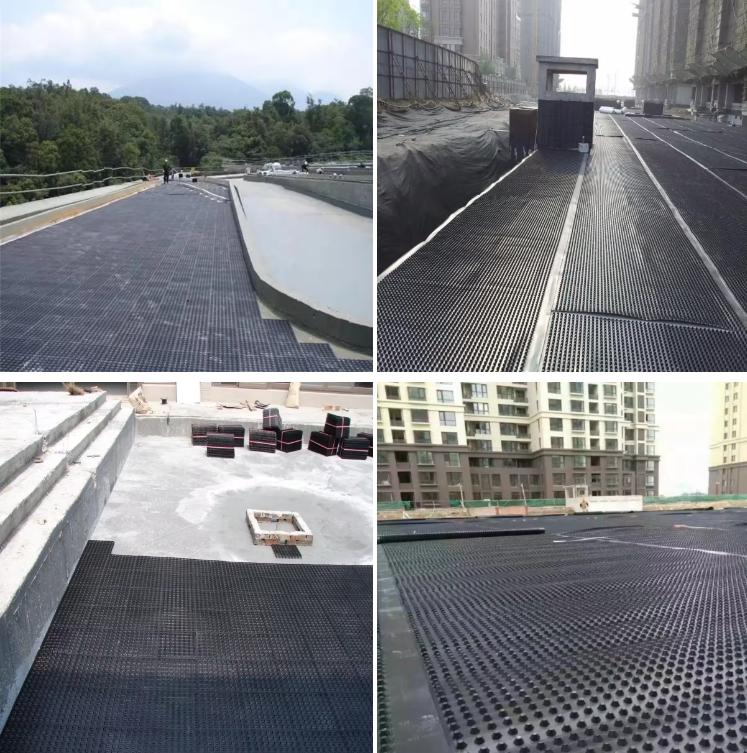

Roof Drain , Road Subgrade , slope protection

Width

customerised

Weight

1000g/m2-1800g/m2

Elongation

≥80%

Puncture strength

≥350N

Application

Rain Water Drainage and storage

When the elongation is 10%, the tensile force/(N/100mm) ≥		350
Maximum tensile force/（N/100mm）≥		600
elongation at break/% ≥		25
Tear resistance/N ≥		100
Compression performance	Maximum strength/kPa at a compression rate of 20% ≥	150
	Extreme compression phenomenon	No rupture
Low temperature flexibility		-10℃ No cracks
Tensile retention rate at 10% elongation/% ≥		80
Maximum tensile retention rate /% ≥		90
Elongation at break retention rate/% ≥		70
Maximum strength retention rate/% at a compression rate of 20% ≥		90
Extreme compression phenomenon		No rupture
Low temperature flexibility		-10℃ No cracks
Longitudinal flow rate (lateral pressure 150kPa)/(cm3/s)≥		10

Lead time

Quantity (square meters)	1 - 5000	5001 - 10000	> 10000
Lead time (days)	7	9	To be negotiated
